Solid Tyres

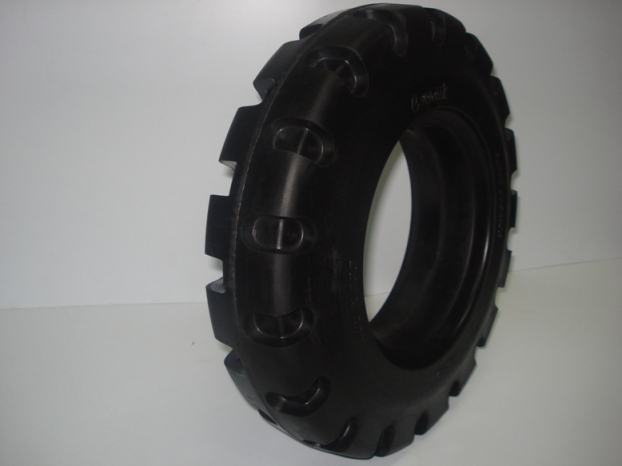

Lug Type

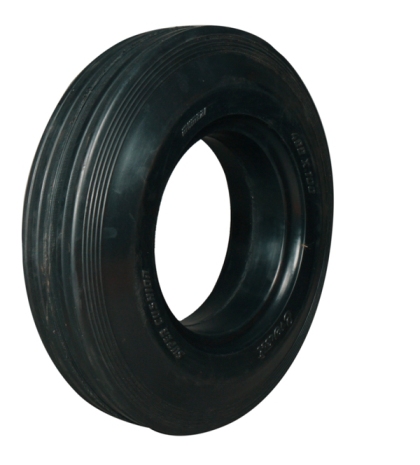

Plain Type

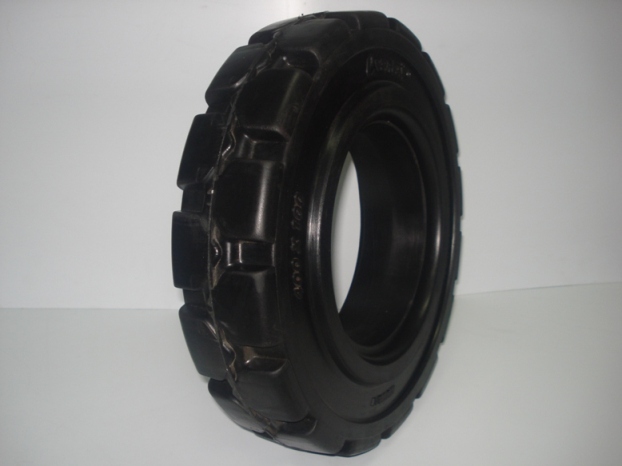

New Lug Type
Key Features
Our Range of Solid Tyres are Specially designed to withstand Extreme Mechanical Stress and Strains. The Tyres are Manufactured, based on Latest Multi - Layer Manufacturing technology. The Three Layers, Inner Core, Centre Cushion & Outer Tread Comprise of Varying Rubber Hardness.
These Three Layers are a Blend of Different Natural & Synthetic Rubber Formulation to give each Layer its Requisite Properties required during Dynamic Operations.
Core
The Inner Core is made up of Hard SBR & Natural Rubber Blend & Re-Inforced with Hi Tensile steel Bead Wire Which Enhances its grip with Rim & results in better Compression Set (Compression Set Being Rubber’s Property to Retain its Original Size & Shape).
Centre Cushion
The Centre Cushion is made up of Soft Natural Rubber to give good Cushion effect & high Flex Resistance.
Outer tread
The Outer Tread Formulation is a Blend of Natural & SBR Rubber which gives it high abrasion resistance properties & High, Cut and Chipping Resistance also. The tread is designed to give the Tyre Low rolling resistance & Maximum Traction & Stability thereby making it Energy efficient.
The Tyre Rolling out of Our Manufacturing Plant is Highly Versatile, Multi - Layer Integrated Tyre having low Heat Build up, High wear & tear Resistance and Substantial Load Carrying Capacity.
Sizes and Dimension Details:
*Customized sizes and shapes can be Made-to-Order on bulk basis.
| Tyre Code | Tyre Size | Rim Size | Width (Inch) |
Diameter (Inch) | Load Capacity Steering Wheels (Kgs) |
| EST 103020 | 3.00 - 4 | 2.10 - 4 | 3.3 | 10 | 175 |
| EST 123525 | 4.00 - 4 | 2.5 - 4 | 3.3 | 12 | 300 |
| EST 124025 | 4.00 - 4 | 2.5 - 4 | 3.9 | 12 | 350 |
| EST 124025 | 4.00 - 4 | 2.5 - 6 | 3.9 | 12 | 375 |
| EST 154530 | 15 X 4 ½ - 8 | 3.00 - 8 | 3.5 | 15 | 730 |
| EST 155030 | 15 X 5 - 8 | 3.00 - 8 | 5 | 15 | 800 |
| EST 164030 | 4.00 - 8 | 3.00 - 8 | 3.9 | 15.9 | 830 |
| EST 165040 | 4.00 - 8 | 4.00 - 8 | 4.9 | 15.9 | 900 |
| EST 185030 | 5.00 - 8 | 3.00 - 8 | 4.9 | 17.9 | 875 |
| EST 216040 | 4.00 - 9 | 4.00 - 9 | 6.7 | 20.15 | 1375 |
| EST 218060 | 21 X 8 - 9 | 6.00 - 9 | 7 | 20.27 | 1950 |
| EST 236555 | 6.50 - 10 | 5.50 - 10 | 6.75 | 22.8 | 1800 |
| EST 239065 | 23 X 9 -10 | 6.50 - 10 | 6.85 | 20.47 | 2425 |
| EST 260750 | 7.00 - 12 | 5.00 - 12 | 6.97 | 25.39 | 2190 |
