Forklift Wheel / Press On / Band On Wheel
Forklift Tyre With
Rim & Hub

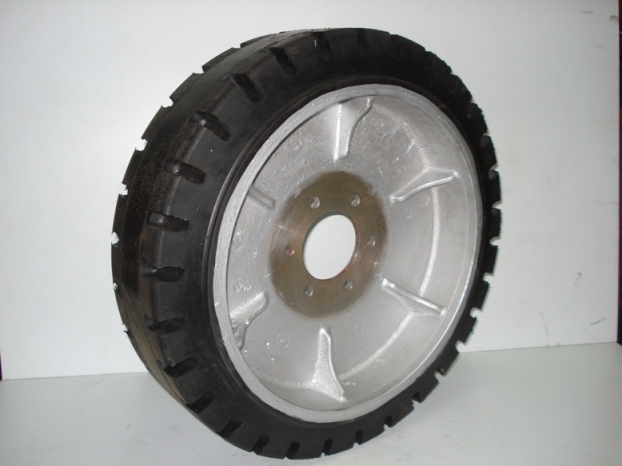

Forklift Wheel With
Rim & Hub
(Fabricated)

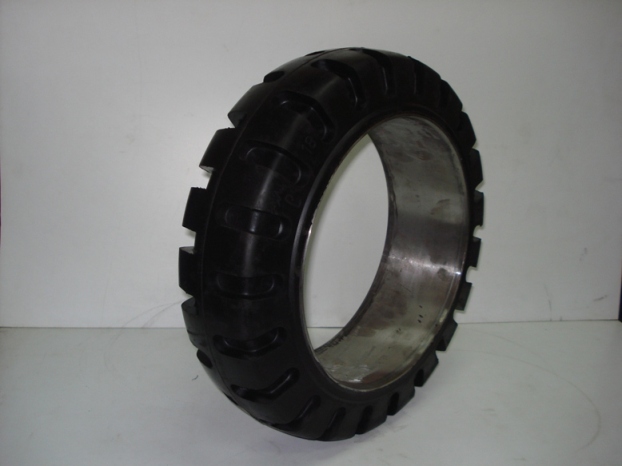

Press On / Band On
Wheel
Key Features
Press-On-Tyres are used as interference fit onto a wheel Hub. Press on Tyres are dual structure Tyres consisting of Inner Mild Steel Rim/ Band with Rubber Lining Bonded onto its outer Surface.
The M.S. Rim is Turned to Zero Tolerance size to give perfect interference fitting to Hub. The Rubber is of Superior quality of required Hardness & is Bonded to the M.S. Rim / Band.
Proper adhesion of M.S. Rim & Rubber Lining is achieved by using Latest Technology & Bonding Agents. The Rubber to metal Bond Obtained is Strong, Durable & also Resistant to Adverse Environmental factors.
Sizes and Dimension Details:
*Customized sizes and shapes can be Made-to-Order on bulk basis.
| Tyre Code | Tyre Size OD and ID |
Sizes in MM | Load Capacityat 16 Kmph (Kgs) |
| EBW 0835 | 8 X 3 ½ X 5 | 200 X 85 | 525 |
| EBW 100462 | 10 X 4 X 6 ¼ | 250 X 102 X 158.75 | 600 |
| EBW 100562 | 10 X 5 X 6 ¼ | 250 X 127 X 158.75 | 910 |
| EBW 100662 | 10 X 6 X 6 ¼ | 250 X 152 X 158.75 | 1035 |
| EBW 120580 | 12 X 5 X 8 | 303 X 127 X 203.20 | 925 |
| EBW 130480 | 13 X 4 ½ X 8 | 328 X 114 X 203.20 | 950 |
| EBW 1505113 | 15 X 5 X 11 ¼ | 380 X 127 X 285.75 | 1250 |
| EBW 1605105 | 16 X 5 X 10 ½ | 402 X 127 X 266.7 | 1325 |
| EBW 1606105 | 16 X 6 X 10 ½ | 402 X 152 X 266.7 | 1725 |
| EBW 1605113 | 16 X 5 X 11 ¼ | 402 X 127 X 285.75 | 1340 |
| EBW 1606113 | 16 X 6 X 11 ¼ | 402 X 152 X 285.75 | 1675 |
| EBW 1607113 | 16 X 7 X 11 ¼ | 402 X 177 X 285.75 | 2015 |
| EBW 1705113 | 17 ¼ X 5 X 11 ¼ | 438 X 127 X 285.75 | 1215 |
| EBW 1706113 | 17 ¼ X 6 X 11 ¼ | 438 X 152 X 285.75 | 1525 |
| EBW 1707113 | 17 ¼ X 7 X 11 ¼ | 438 X 177 X 285.75 | 1765 |
| EBW 1805122 | 18 X 5 X 12 1/8 | 457 X 127 X 308 | 1475 |
| EBW 1806122 | 18 X 6 X 12 1/8 | 457 X 152 X 308 | 1855 |
| EBW 1807122 | 18 X 7 X 12 1/8 | 457 X 177 X 308 | 2315 |
| EBW 1808122 | 18 X 8 X 12 1/8 | 457 X 203 X 308 | 2625 |
| EBW 1809122 | 18 X 9 X 12 1/8 | 457 X 228 X 308 | 3000 |
| EBW 200514 | 20 X 5 X 14 | 508 X 127 X 355.6 | 1525 |
| EBW 200614 | 20 X 6 X 14 | 508 X 152 X 355.6 | 1925 |
| EBW 200714 | 20 X 7 X 14 | 508 X 177 X 355.6 | 2250 |
| EBW 210415 | 21 X 4 X 15 | 533 X 102 X 381 | 1325 |
| EBW 210515 | 21 X 5 X 15 | 533 X 127 X 381 | 1625 |
| EBW 210615 | 21 X 6 X 15 | 533 X 152 X 381 | 2115 |
| EBW 210715 | 21 X 7 X 15 | 533 X 177 X 381 | 2560 |
| EBW 210815 | 21 X 8 X 15 | 533 X 202 X 381 | 3025 |
| EBW 210915 | 21 X 9 X 15 | 533 X 228 X 381 | 3425 |
| EBW 220616 | 22 X 6 X 16 | 560 X 152 X 406.4 | 2170 |
| EBW 220716 | 22 X 7 X 16 | 560 X 177 X 406.4 | 2625 |
| EBW 220816 | 22 X 8 X 16 | 560 X 202 X 406.4 | 3100 |
| EBW 260620 | 26 X 6 X 20 | 660 X 152 X 508 | 2470 |
| EBW 260720 | 26 X 7 X 20 | 660 X 177 X 508 | 3100 |
